The JB Engineering's Tunnel Support System is designed to provide immediate and robust support during tunnel excavation, especially in challenging ground conditions such as weak, sheared, or subsiding ground, fault zones, sediments, and urban environments. The system primarily uses steel pipes installed from the tunnel face to form a “roof” which stabilizes tunnel headings by distributing load in the longitudinal direction and reducing excavation-induced deformation.

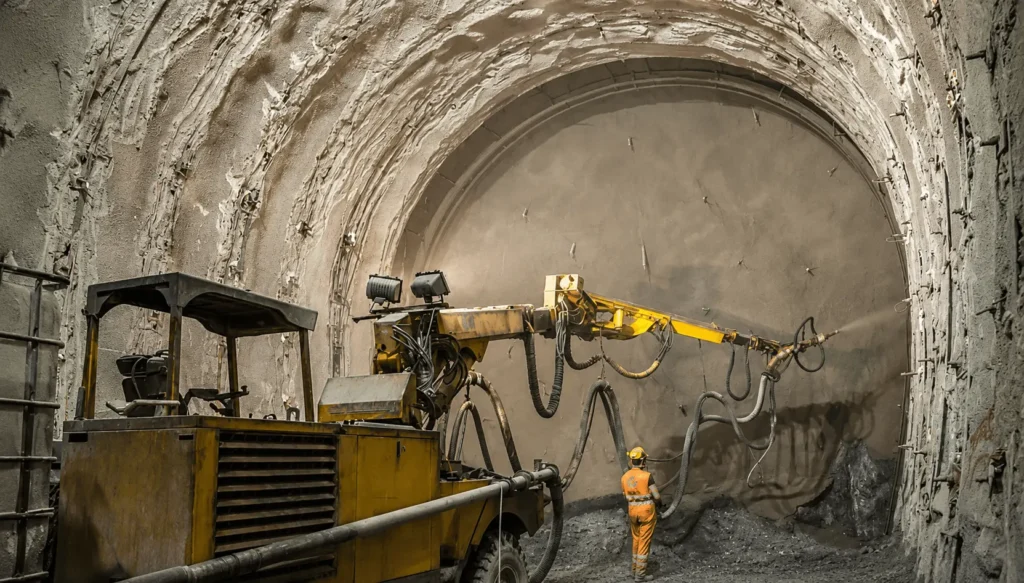

Tunnel construction has been a critical aspect of infrastructure development worldwide. From transportation tunnels to underground mines, the need for robust support methods is paramount. In this comprehensive article, we'll delve into four key methods of tunnel support: shotcrete support, rock bolts support, metal mesh support, and steel arch support. Our focus will be on the essential role of rock bolts in tunnel construction and their significance in ensuring the safety and stability of underground structures.
A tunnel support system comprises structural elements and engineering methods used to reinforce tunnel excavations, prevent collapse, and manage ground pressure. It handles ground deformation, maintains tunnel stability, and protects the tunnel from water ingress and other environmental effects.
Temporary Support: Installed immediately during excavation, using methods like shotcrete, steel ribs, rock bolts, and lattice girders.
Permanent Support: Designed for long-term stability using cast-in-place concrete shells or precast concrete segments; these also provide necessary tunnel lining, corrosion protection, and waterproofing.
Engineers factor in tunnel size, shape, depth, ground conditions, and anticipated loads using structural models and finite element analysis to ensure adequate support. The specification may vary depending on geological conditions and project requirements.
Tunnel linings are crucial for long-term stability. They prevent soil movement, groundwater entry, and environmental damage. Linings can be made from reinforced concrete, steel, or precast segments, depending on specific needs.
Regular inspections and monitoring with instruments such as extensometers and convergence meters are done to detect deformation and ensure structural safety. Grouting and other reinforcement methods are used if convergence or instability is detected.
Tunnel support systems are subject to safety and construction regulations (e.g., OSHA, ETAG, TSR) that cover air quality, emergency exits, ventilation, and integrity.
Efficient drainage systems are critical for preventing water buildup, rusting, and deterioration of tunnel support components. These typically include pipes and drains to direct water away from the structure.
Tunnel support System encompasses the methods employed to reinforce the excavation and maintain the stability of the tunnel. It involves the use of structural elements and support systems to resist ground pressure, prevent collapse, control deformations, and ensure the safety of the tunnel structure.
Safety of Personnel: Tunnel support systems provide a safe working environment for construction workers by preventing potential collapses and mitigating the risk of accidents or injuries.
Structural Integrity: Tunnel support helps maintain the integrity of the tunnel structure, ensuring its long-term stability and preventing damage or deterioration due to ground movement or external forces.
Ground Control: Tunnel support systems control and stabilize the surrounding ground, preventing excessive deformations, settlements, or heave, which can affect the stability of the tunnel and adjacent structures.
Protection of Infrastructure: Tunnel support protects critical infrastructure such as utilities, pipelines, or transportation systems passing through or adjacent to the tunnel, minimizing the risk of damage or disruption.
Maintenance and Durability: Proper tunnel support ensures the long-term maintenance and durability of the tunnel, reducing the need for frequent repairs and costly maintenance operations.
Mitigation of Ground Hazards: Tunnel support systems help mitigate ground hazards such as rockfall, ground instability, or water ingress, enhancing the overall safety of the tunnel environment.
