Pipe Roofing System
In tunneling projects, weak ground conditions such as fractured rock, loose sediments, or fault zones can lead to collapse or excessive deformation. The JB Engineering Pipe Roofing System provides a protective canopy of steel pipes installed ahead of excavation to stabilize the tunnel face before full excavation begins.
Designed and manufactured by Rebar Couplers India Private Limited (JB Engineering) – a trusted name in construction materials – our slope protection solutions combine high-performance materials, engineered design, and ease of installation to deliver dependable site performance even in harsh environmental conditions.
Whether your project requires geosynthetics, erosion mats, wire mesh systems, retaining support fabrics or hybrid reinforcement solutions, JB-16 materials are formulated to withstand scour, runoff, and ground movement while safeguarding infrastructure and reducing maintenance costs.

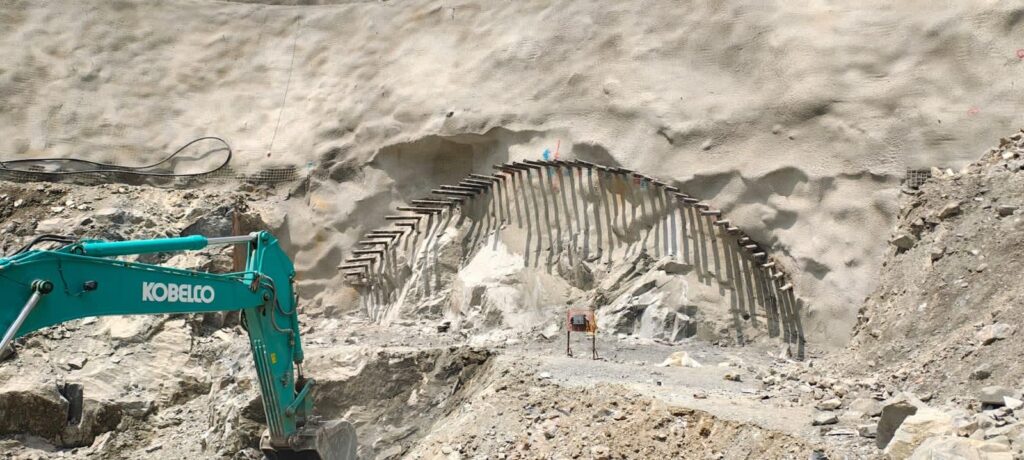

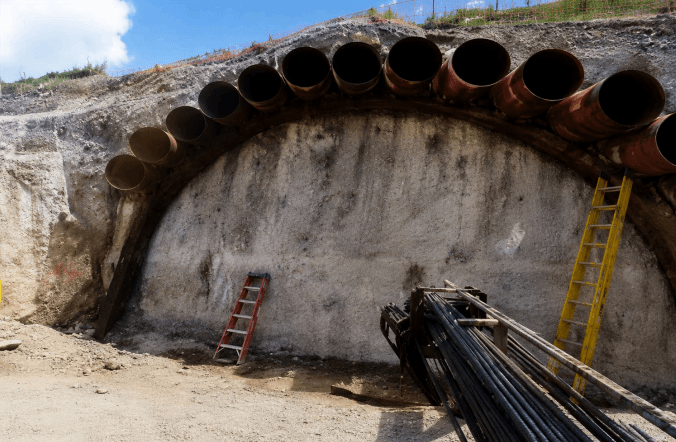

A Pipe Roofing System is a pre-support method used in tunneling where steel pipes are installed in a fan-shaped umbrella configuration above the tunnel crown before excavation.
Provides immediate stabilization in soft or unstable formations.
Controls deformation and surface settlement.
Enhances support in unpredictable geological conditions.
Ensures structural reinforcement at tunnel entry and exit points.
Reduces risk to nearby buildings and infrastructure.
Provides structural stability ahead of excavation.
Manufactured from high-grade steel for dependable load-bearing capacity.
Supports modern drilling machines and automated processes.
Allows customized design for varying tunnel diameters.
Minimizes surface disturbance and improves construction safety.
Tunnel pre-support & umbrella arch systems
Metro rail tunneling
Highway and railway tunnel construction
Hydropower underground works
Re-excavation of collapsed tunnels
Weak ground stabilization projects
Mountain road tunnel projects
Infrastructure development in urban zones
Umbrella Pipe System is an advanced pre-support method for weak ground conditions in tunneling.
- Provides immediate support ahead of excavation, reducing deformation and ground movement.
- Uses self-drilling pipe technology for faster, more efficient and reliable installation.
- Enhances safety, stability, and load-bearing performance during tunneling.
- Fully mechanized installations are now industry standard, offering global benefits.
JB Engineering manufactures Pipe Roofing Systems under strict quality control processes ensuring:
- Dimensional accuracy
- Certified steel grade compliance
- Verified mechanical strength
- Controlled welding and fabrication
- Load-bearing reliability
- Long service life
Our products are supplied to major metro rail, hydropower, highway, railway, and government infrastructure projects across India and international markets, reinforcing our authority in tunnel support systems.
01. What is a Pipe Roofing System used for?
It is used for tunnel pre-support and ground stabilization in weak or unstable soil and rock conditions.
02. Is it suitable for urban tunneling?
Yes. It helps control settlement and protects nearby infrastructure.
03. What steel grade is used?
Typically S-355 or ASTM A500 grade steel, ensuring high tensile strength.
04. Can pipe length and thickness be customized?
Yes. Custom dimensions can be manufactured as per project requirements.
05. Is the system compatible with mechanized drilling?
Yes. It is designed to integrate with modern tunneling and drilling equipment.
