PARALLEL THREAD REBAR COUPLERS

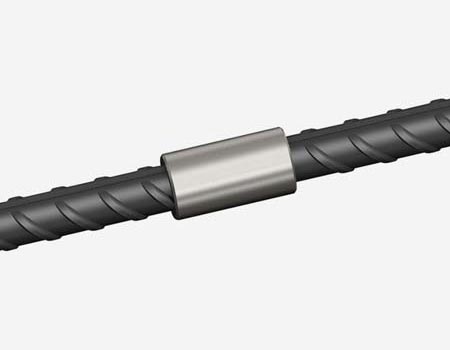

Parallel Thread Couplers
Parallel Thread couplers are suitable for the majority of applications which require the joining of Rebar.
They are normally supplied fitted to the end of the threaded bar and require only the engagement and tightening of the adjoining bar on site using a calibrated torque wrench.
The Jb Rebar Couprlers range of Parallel Thread couplers are designed for use in concrete structures to meet the requirements of BS 8110 for mechanical splices.

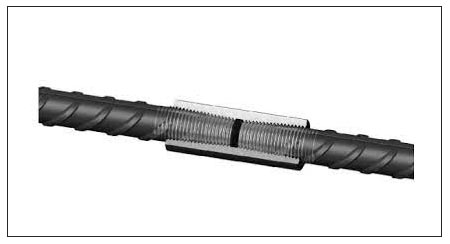

TTS Standard Couplers
Jb Rebar Couprlers Standard Tapered Thread Couplers are designed for use when connecting two bars of the same diameter, where one bar can be rotated. They are available to suit bar sizes 8mm to 50mm.

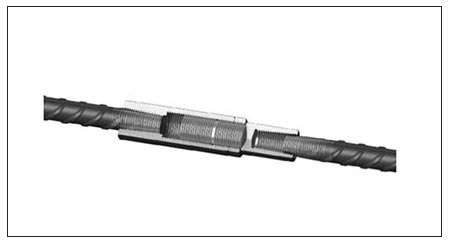

TTP Positional Couplers
Positional Parallel Thread Couplers are used to join two straight, bent or curved bars when neither bar can be rotated. Available to suit bar sizes 12mm to 50mm, they can also be used as a gap closer between two fixed bars. The male and female components provide a degree of adjustability and the connection is secured by the tightening of a locknut.
TTT Transition Coupler
The transition range is used to join rebars of different diameters when it is possible to rotate one bar, and is designed to achieve failure loads greater than 100% of the characteristic strength of the smaller diameter grade 500 bar. The couplers are designed to suit bar sizes 8mm to 50mm.

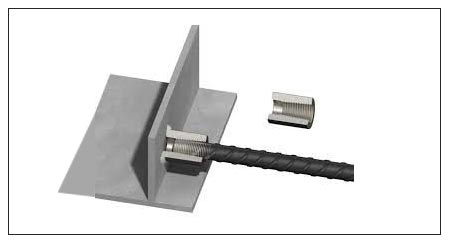

TTW Weldable Couplers
Parallel Thread Weldable couplers are used to connect reinforcing bars to structural steel sections or plates and are available to suit bar sizes 8mm to 50mm.

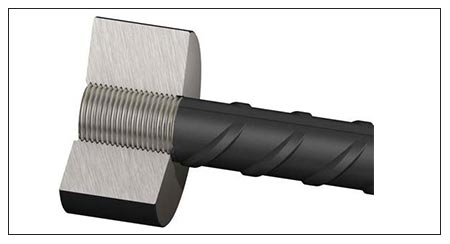

TTH Headed Anchors
Headed anchors provide dead end embedment in concrete and can be used as an alternative to hooked bars. They are available to suit bar sizes 8mm to 50mm.

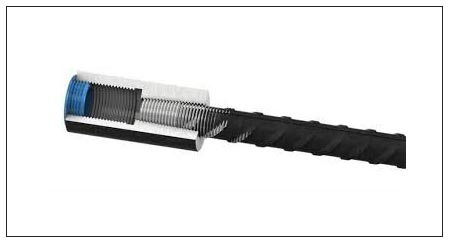

TTA Parallel Thread Adaptors
The TTA Parallel Thread Adaptor accepts a standard metric bolt or studding. It is particularly useful for connecting temporary fixtures to concrete. Once the fixture is removed, reinforcement continuity can be achieved in the second phase construction by using another TTA adaptor and central threaded stud. The TTA is designed to achieve failure loads in excess of 100% of the characteristic strength of grade 500 Rebar and meets the requirements of BS 8110 for mechanical splices.
